2026 Top Exhaust Pressure Gauge Types for Global Buyers

Choosing the right Exhaust Pressure Gauge can protect engines, improve diagnostics, and reduce costly maintenance decisions. Global buyers often compare mechanical gauges, digital gauges, differential pressure gauges, and remote-sensing systems. Each type serves a different measurement need.

A mechanical gauge offers simple operation and visible readings near the exhaust line. Digital models provide clearer displays, data logging, and easier readings in poor lighting. Differential gauges help technicians monitor pressure changes across diesel particulate filters, turbochargers, and exhaust restrictions. Remote-sensing versions can keep operators farther from hot surfaces. Small details matter.

In real workshops, temperature, vibration, soot, and condensation can distort results. A gauge rated for ordinary air service may fail beside a hot exhaust manifold. Buyers should check pressure range, temperature tolerance, connection size, accuracy, ingress protection, and calibration records. Materials also deserve attention. Stainless steel components usually support demanding industrial environments, but they do not remove every installation risk.

This guide compares leading Exhaust Pressure Gauge types for international purchasing teams. It considers practical fit, supplier documentation, measurement stability, and long-term service requirements. Standards and certification expectations vary by market, so buyers should verify current regional requirements before ordering. Product pages can sound convincing. Field performance may still differ.

A perfect gauge does not exist.

Experienced engineers also review impulse-line routing, mounting position, and maintenance access. A poor installation can produce misleading readings, even with a high-quality instrument. This overview aims to support careful specifications, realistic comparisons, and better purchasing decisions across automotive, industrial, marine, and power-generation applications.

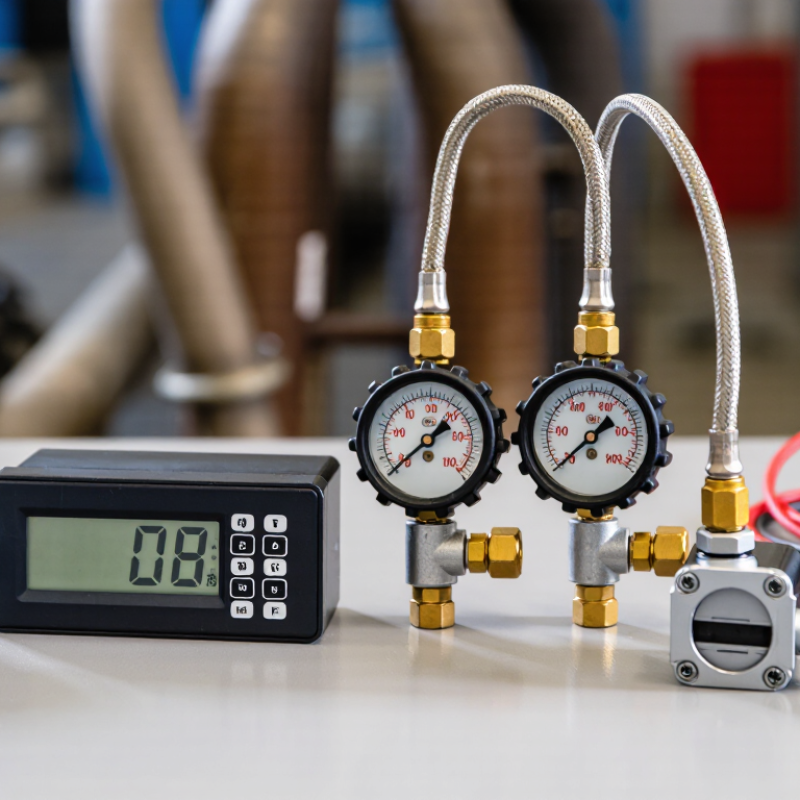

2026 Top Exhaust Pressure Gauge Types for Global Buyers
Table of Contents [Hide]
1 What Is an Exhaust Pressure Gauge and Why Does It Matter?
2 How Exhaust Pressure Gauges Work and What They Measure
3 Which Exhaust Pressure Gauge Types Are Available in 2026?
4 How to Compare Accuracy, Range, Materials, and Durability
5 How Global Buyers Can Select the Right Exhaust Pressure Gauge

What Is an Exhaust Pressure Gauge and Why Does It Matter?

What Is an Exhaust Pressure Gauge and Why Does It Matter?

An exhaust pressure gauge measures pressure inside an engine’s exhaust path. It is often installed before a turbocharger, diesel particulate filter, catalytic converter, or muffler.

The reading shows whether exhaust gases are leaving freely or meeting abnormal resistance. In practical maintenance work, a rising reading can appear before power loss, poor fuel economy, or excessive exhaust temperature.

The instrument usually comes in three forms: mechanical Bourdon-tube gauges, differential-pressure gauges, and electronic pressure sensors. Mechanical gauges are simple and useful for field inspections. Differential models compare pressure before and after a filter, making blockage easier to identify. Electronic sensors support data logging and alarm systems.

U.S. EPA guidance on diesel emission-control systems recognizes pressure monitoring as an important maintenance input, especially for filter loading and regeneration control. The SAE J1667 procedure also provides a standardized approach for measuring diesel exhaust smoke, reminding engineers that exhaust conditions require repeatable testing.

This small instrument protects expensive components. Excessive backpressure can increase turbocharger workload, raise exhaust temperature, and reduce engine response.

The European Environment Agency’s 2024 transport report continues to identify road transport as a major source of air pollution in Europe, so emission-system maintenance remains commercially important.

Still, a gauge is not a diagnosis by itself. I have seen readings misinterpreted because the sensing tube was cracked, blocked, or installed too close to a pressure pulse. That detail matters. A reliable result needs correct tubing, a suitable pressure range, and comparison with the engine maker’s service limits.

How Exhaust Pressure Gauges Work and What They Measure

Exhaust pressure gauges show how hard engine gases are pushing against the exhaust path. A mechanical Bourdon gauge converts pressure into needle movement. An electronic transducer uses a diaphragm and sensor, then displays the reading digitally. Differential pressure gauges compare two points, commonly before and after a diesel particulate filter.

A gauge may measure backpressure, boost-related exhaust pressure, or pressure loss across an aftertreatment unit. Readings usually appear in kPa, bar, or psi. For example, 10 kPa equals about 0.10 bar. Correct port placement matters. A sensor before the filter measures engine-side resistance, while a differential sensor reveals filter loading more directly. The European Commission’s Joint Research Centre reported particle-number reductions above 99% from functioning wall-flow filters under test conditions. That efficiency also means pressure data becomes valuable for detecting restriction.

Field readings are rarely perfect.

Temperature can distort results. Condensation can block a narrow hose. A damaged impulse line may show normal pressure when the exhaust is restricted. The U.S. Environmental Protection Agency’s MOVES technical documentation emphasizes that operating conditions strongly affect emissions calculations, and pressure readings deserve the same caution. Compare measurements at idle, under load, and at rated speed. A single cold-engine reading is weak evidence. Even experienced technicians can over-trust a clean digital display. Calibration records, leak checks, and stable test conditions make the measurement defensible.

2026 Top Exhaust Pressure Gauge Types for Global Buyers

Exhaust pressure gauges measure pressure in the exhaust system relative to atmospheric pressure or the pressure at another point. The chart compares representative full-scale ranges commonly used for different exhaust-pressure applications.

A diaphragm or pressure sensor responds to the pressure difference and converts the mechanical deflection into a dial reading or an electronic signal. DPF differential gauges typically measure the pressure drop across a filter, while back-pressure gauges measure exhaust restriction upstream of a muffler, catalyst, turbocharger, or other component. Ranges shown are representative examples, not universal product specifications.

Which Exhaust Pressure Gauge Types Are Available in 2026?

In 2026, global buyers can choose from several exhaust pressure gauge types. Mechanical Bourdon-tube gauges remain useful for simple, local readings near an engine test point. They need no electrical supply. Diaphragm differential gauges compare pressure before and after a filter, muffler, or turbocharger. This helps technicians identify restriction instead of guessing from engine noise.

Electronic piezoresistive gauges support data logging, alarm limits, and remote monitoring. Many provide analog, CAN, or digital outputs for fleet and laboratory systems. Buyers can also select gauge-pressure or absolute-pressure models. A 0–2 bar range may suit some systems, but the correct range must follow measured engine conditions. A narrow range improves resolution. A wider range offers safer overload protection.

The International Energy Agency reported more than 14 million electric car sales in 2023. Combustion and hybrid equipment still requires dependable exhaust testing, especially in workshops and industrial machinery. Automotive sensor market research from Grand View Research forecasts strong growth through 2030, supporting demand for connected measurement devices. Still, digital is not automatically better. A dusty workshop may favor a sealed mechanical gauge, while a test cell needs calibration records and timestamped data. I would verify vibration resistance, temperature limits, response time, and calibration traceability before purchase. These details are easy to overlook.

2026 Top Exhaust Pressure Gauge Types for Global Buyers - Which Exhaust Pressure Gauge Types Are Available in 2026?

Gauge Type Operating Principle Typical Pressure Reference Representative Measurement Range Typical Accuracy Best-Fit Exhaust Applications Key Selection Considerations
Mechanical Diaphragm Gauge A flexible diaphragm moves a mechanical linkage and pointer in response to pressure. Gauge pressure or differential pressure Approximately 0–10 mbar to 0–1 bar, depending on construction Commonly about ±1.0% to ±2.0% of full scale Low-pressure flue-gas systems, ventilation ducts, burners, and furnace exhaust lines Select diaphragm material and seals for temperature, condensate, dust, and corrosive gases.
Bourdon Tube Pressure Gauge A curved elastic tube changes shape as internal pressure increases and drives a pointer. Gauge pressure Approximately 0–1 bar to 0–1,000 bar; exhaust applications generally use the low-pressure end Commonly about ±0.5% to ±2.0% of full scale Engine exhaust backpressure checks, industrial duct pressure, and higher-pressure gas sections Use a suitable pressure snubber, cooling line, or remote diaphragm seal when pulsation or heat is high.
Differential Pressure Gauge Measures the difference between upstream and downstream pressure across a component. Differential pressure, ΔP Approximately 0–10 Pa to 0–1 bar, depending on the design Commonly about ±1.0% to ±2.5% of full scale Exhaust filters, particulate collectors, silencers, heat exchangers, and draft monitoring Verify both pressure ports, impulse-line routing, zero stability, and resistance to clogging.
Digital Manometer A pressure sensor converts the measured pressure into a digital display reading. Gauge, differential, or absolute pressure Common portable ranges include approximately ±250 Pa to ±2 bar Often about ±0.5% to ±1.0% of reading or full scale Commissioning, troubleshooting, HVAC exhaust testing, burner adjustment, and field verification Check battery life, display resolution, calibration interval, temperature compensation, and data logging.
Electronic Pressure Transmitter A strain-gauge, piezoresistive, capacitive, or similar sensor produces an electrical output proportional to pressure. Gauge, absolute, or differential pressure From low-pressure ranges such as 0–100 Pa to high-pressure ranges above 100 bar Commonly about ±0.25% to ±1.0% of span Continuous monitoring, engine control, emissions systems, process automation, and remote alarms Confirm output type, supply voltage, ingress protection, electrical compatibility, and thermal limits.
Absolute Pressure Gauge Measures pressure relative to a sealed vacuum reference rather than atmospheric pressure. Absolute pressure Common ranges include approximately 0–1 bar absolute to 0–10 bar absolute Often about ±0.5% to ±1.0% of full scale Low-pressure exhaust analysis, vacuum-assisted systems, altitude-sensitive testing, and laboratory measurement Use when atmospheric-pressure changes would distort a gauge-pressure measurement.
Compound Vacuum and Pressure Gauge A mechanical or electronic sensing element indicates both negative and positive pressure relative to atmosphere. Gauge pressure across vacuum and positive-pressure regions Typical examples range from −1 bar to +1 bar or −1 bar to +3 bar Commonly about ±1.0% to ±2.0% of full scale Induced-draft equipment, exhaust fans, ventilation systems, and systems that can alternate between vacuum and pressure Confirm the separate vacuum and pressure scales are clear enough for the required reading resolution.
High-Temperature Remote-Sensing Gauge Pressure is transferred through a capillary, impulse line, cooling element, or diaphragm seal to a gauge installed away from the hot exhaust stream. Usually gauge or differential pressure Application-specific; commonly selected from low-pressure exhaust ranges up to several bar Typically about ±1.0% to ±2.0% of full scale Hot engine exhaust, furnace ducts, incinerators, kilns, and high-temperature process vents Evaluate line plugging, condensate formation, response time, heat dissipation, and material compatibility.

Note: Pressure ranges and accuracy values are representative industry ranges, not universal specifications. Actual performance depends on sensor design, calibration, temperature, installation, media composition, and the selected measurement span.

How to Compare Accuracy, Range, Materials, and Durability

Choosing an exhaust pressure gauge starts with accuracy, not appearance. Compare the stated accuracy class, test temperature, and calibration method. A gauge rated at ±1% of full scale may lose useful resolution on a wide range. For reliable readings, normal pressure should sit near the middle of the dial, not at its lowest edge. Short sentences matter here. Readability affects decisions.

Range selection depends on the engine, filter, and exhaust layout. Record normal pressure during cold start, steady load, and maximum permitted load. Then select a gauge with enough headroom for temporary spikes. A range ending far above operating pressure can hide small restrictions. A range that is too narrow may suffer damage. Real systems are less stable than test benches.

Material choice should match heat, moisture, vibration, and corrosive gases. Stainless steel cases and wetted parts usually resist harsh environments better than basic plated metals. Check the connection material separately; it may fail before the case. A heat shield or remote mount can protect the mechanism from hot exhaust surfaces. Liquid-filled designs can reduce pointer movement under vibration, but filling does not replace correct installation.

Durability also depends on pressure pulsation and thermal cycling. Look for overload protection, vibration resistance, sealed construction, and documented calibration records. A readable dial is useful, yet digital output may support trend monitoring. Do not trust a specification sheet alone. Installation errors, blocked impulse lines, and poor zero checks can distort accurate instruments. Even experienced teams miss these details. Recheck after service.

How Global Buyers Can Select the Right Exhaust Pressure Gauge

2026 Top Exhaust Pressure Gauge Types for Global Buyers

How Global Buyers Can Select the Right Exhaust Pressure Gauge

Global buyers should match the gauge to the engine, exhaust system, and measurement point. A diesel engine may need a higher pressure range than a small gasoline engine. Check whether the application needs gauge pressure or absolute pressure. This detail prevents misleading readings.

Analog gauges are simple, visible, and useful near hot equipment. Digital gauges offer clearer readings, data logging, and adjustable alarms. Select a range where normal pressure stays near the middle of the scale. A 0–100 kPa gauge may be unsuitable if normal readings remain below 10 kPa. It can hide small changes.

Temperature, vibration, and moisture matter. Choose a gauge with suitable seals, a readable dial, and a connection that matches the existing port. A remote mounting line can protect the instrument from direct exhaust heat. Confirm thread standards before ordering. Small mismatches cause expensive delays. Check calibration certificates and inspection dates. Reliable suppliers should provide material details, pressure limits, and operating temperature data.

Do not select by price alone. I would also question impressive specifications without test conditions. They may not reflect real installation stress. Field technicians should compare readings with a verified reference gauge during commissioning. Recheck after vibration, filter changes, or engine repairs. No gauge remains perfect forever. A practical choice is accurate enough, durable enough, and easy to inspect.
